IRL530NL, IRL530NS HEXFET Power MOSFET

IRL530NL Description

l Advanced Process Technology l Surface Mount (IRL530NS) l Low-profile through-hole (IRL530NL) l 175°C Operating Temperature l Fast Switching l Fully .
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

IRL530NL Features

* SUÃIVH7@S 96U@Ã8P9@ `@6SÃÃ2Ã! X@@FÃ! GDI@ÃG Q6SUÃIVH7@S 96U@Ã8P9@ IGBT 1- GATE 2- COLLECTOR Q6SUÃIVH7@S 96U@Ã8P9@ `@6SÃ&Ã2Ã((& X@@FÃ( GDI@Ã8 TO-262 Part Marking Information IRL530NS/L TO-262 Package Outline DIU@SI6UDPI6G S@8UDAD@S GPBP 6TT@H7G` GPUÃ8P9@ "G UCDTÃDTÃ6IÃDSG" GPUÃ8P9@Ã&'(

IRL530NL Applications

* The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible onresistance in any existing surface mount package. The D2Pak is suitable for high current applications because of its low internal connection

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRL530NL, IRL530NS. Please refer to the document for exact specifications by model.

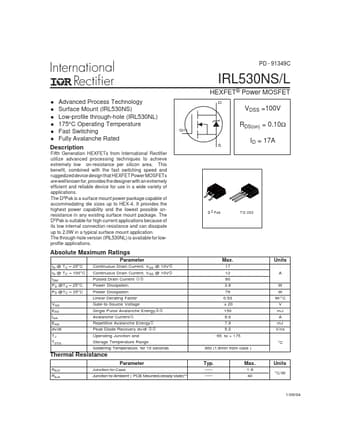

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRL530NL, IRL530NS
Manufacturer
International Rectifier
File Size
281.16 KB
Datasheet
IRL530NS_IRF.pdf
Description
HEXFET Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRL530NL, IRL530NS.
Please refer to the document for exact specifications by model.
