IRKHF112, IRKTF112 - FAST THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR

International Rectifier

📥 Download Datasheet

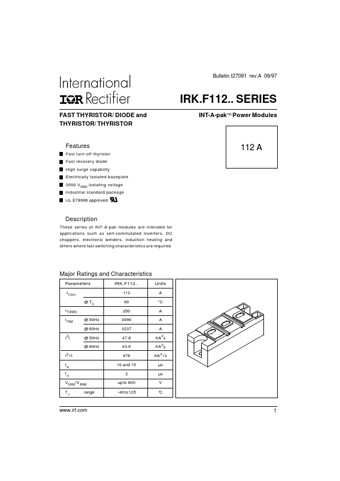

IRKHF112 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRKHF112, IRKTF112. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IRKHF112, IRKTF112
Manufacturer	International Rectifier
File Size	141.64 KB
Description	FAST THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR
Datasheet	IRKTF112_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRKHF112, IRKTF112. Please refer to the document for exact specifications by model.

IRKHF112 Product details

Description

These series of INT-A-pak modules are intended for applications such as self-commutated inverters, DC choppers, electronic welders, induction heating and others where fast switching characteristics are required.

Features

Fast turn-off thyristor Fast recovery diode High surge capability Electrically isolated baseplate 3000 V RMS isolating voltage Industrial standard package UL E78996 approved 112 A.
