Datasheet Details
- Part number
- IRIS-G6624
- Manufacturer
- International Rectifier
- File Size
- 300.53 KB
- Datasheet
- IRIS-G6624_InternationalRectifier.pdf
- Description
- INTEGRATED SWITCHER
IRIS-G6624 Description

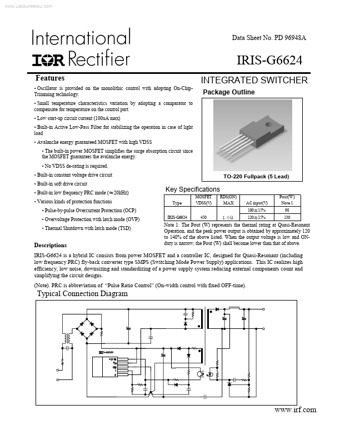

www.DataSheet4U.com Data Sheet No.PD 96948A IRIS-G6624 .
Note 1: The Pout (W) represents the thermal rating at Quasi-Resonant Operation, and the peak power output is obtained by approximately 120 to 140% o.
IRIS-G6624 Features
* Oscillator is provided on the monolithic control with adopting On-ChipTrimming technology.
* Small temperature characteristics variation by adopting a comparator to compensate for temperature on the control part.
* Low start-up circuit current (100uA max)
* Built-in
IRIS-G6624 Applications
* This IC realizes high efficiency, low noise, downsizing and standardizing of a power supply system reducing external components count and simplifying the circuit designs. (Note). PRC is abbreviation of “Pulse Ratio Control” (On-width control with fixed OFF-time). Typical Connection Diagram
IRIS-G
