IRG4PSC71KD - INSULATED GATE BIPOLAR TRANSISTOR

International Rectifier

📥 Download Datasheet

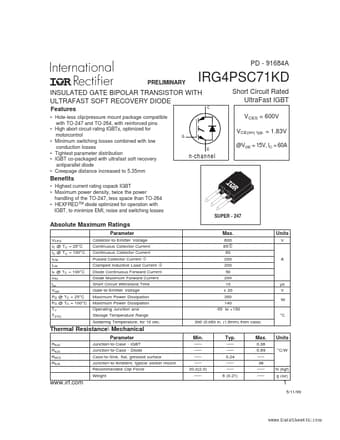

IRG4PSC71KD Datasheet Preview — Preview of IRG4PSC71KD PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IRG4PSC71KD
Manufacturer	International Rectifier ↗
File Size	199.96 KB
Description	INSULATED GATE BIPOLAR TRANSISTOR
Datasheet	IRG4PSC71KD_InternationalRectifier.pdf

IRG4PSC71KD Product details

Features

Hole-less clip/pressure mount package compatible with TO-247 and TO-264, with reinforced pins.
High abort circuit rating IGBTs, optimized for motorcontrol.
Minimum switching losses combined with low conduction losses.
Tightest parameter distribution.
IGBT co-packaged with ultrafast soft recovery antiparallel diode.
Creepage distance increased to 5.35mm VCES = 600V G E VCE(on) typ. = 1.83V @VGE = 15V, IC = 60A n-ch an nel Benefits.
