IRFSL7730PbF, IRFB7730PbF Power MOSFET

International Rectifier

Description

Application * Brushed motor drive applications * BLDC motor drive applications *Battery powered circuits * Half-bridge and full-br.

📥 Download Datasheet

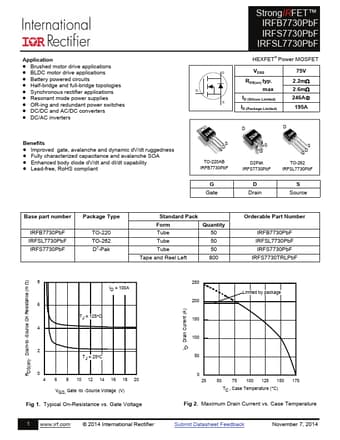

IRFSL7730PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRFSL7730PbF, IRFB7730PbF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRFSL7730PbF, IRFB7730PbF
Manufacturer: International Rectifier
File Size: 631.46 KB
Datasheet: IRFB7730PbF-InternationalRectifier.pdf
Description: Power MOSFET
Note: This datasheet PDF includes multiple part numbers: IRFSL7730PbF, IRFB7730PbF.
Please refer to the document for exact specifications by model.

Features

* SL7730PbF 1000 100µsec 1msec 100 Limited by package OPERATION 10 IN THIS AREA LIMITED BY RDS(on) 1 Tc = 25°C Tj = 175°C Single Pulse 0.1 0.1 1 10msec DC 10 VDS, Drain-toSource Voltage (V) Fig 10. Maximum Safe Operating Area 6.0 5.0 4.0 3.0 2.0 1.0 0.0 -10 0 10 20 30 40 50 60 70 80 VDS,

Applications

*  BLDC motor drive applications
* Battery powered circuits
*  Half-bridge and full-bridge topologies
*  Synchronous rectifier applications
*  Resonant mode power supplies
*  OR-ing and redundant power switches
*  DC/DC and AC/DC converters
*  DC/AC inverters Benefits
