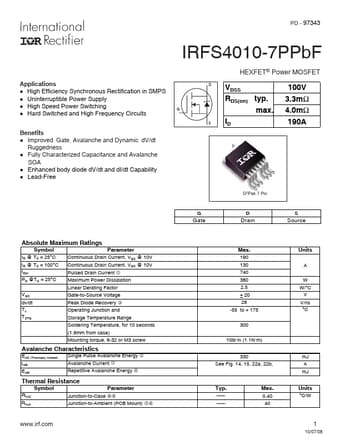

IRFS4010-7PPbF - Power MOSFET

International Rectifier

Datasheet Details

Part number	IRFS4010-7PPbF
Manufacturer	International Rectifier
File Size	309.70 KB
Description	Power MOSFET
Datasheet	IRFS4010-7PPbF-InternationalRectifier.pdf

Equation below based on circuit and waveforms shown in Figures 16a, 16b. 4. PD (ave) = Average power dissipation per single avalanche pulse. 5. BV = Rated breakdown voltage (1.3 factor accounts for voltage increase during avalanche). 150 6. Iav = Allowable avalanche current. 7. ∆T = Allowable rise in junction temperature, not to exceed Tjmax (assumed as 100 25°C in Figure 14, 15). tav = Average time in avalanche. 50 D = Duty cycle in avalanche = tav.
f ZthJC(D, tav) = Transient thermal.
