IRFI530N - HEXFET Power MOSFET

General Description

Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area.

Key Features

  • 15 (.045) M IN . 1 2 3 NOTES: 1 D IME N S IO N IN G & TO LE R A N C IN G P E R A N S I Y 14.5M , 1982 2 C O N TR O LLIN G D IM E N S IO N : IN C H . 3.30 (.130) 3.10 (.122) -B13.70 (.540) 13.50 (.530) C D A 1.40 (.055) 3X 1.05 (.042) 2.54 (.100) 2X 0.90 (.035) 3X 0.70 (.028) 0.25 (.010) M A M B 3X 0.48 (.019) 0.44 (.017) B 2.85 (.112) 2.65 (.104) M IN IM U M C R E E P A G E D IS TA N C E B E TW E E N A -B -C -D = 4.80 (.189) Part Marking Information TO-220 FullPak E X A M P L E : T H IS I.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRFI530A Advanced Power MOSFET Fairchild Semiconductor
IRFI530G Power MOSFET Vishay
IRFI530G N-Channel MOSFET INCHANGE
IRFI510 Advanced Power MOSFET Fairchild Semiconductor
IRFI510A Advanced Power MOSFET Fairchild Semiconductor

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
IRFI530NPBF Power MOSFET
IRFI530G HEXFET Power MOSFET
IRFI510G Power MOSFET
IRFI520G HEXFET POWER MOSFET
IRFI520GPBF HEXFET Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

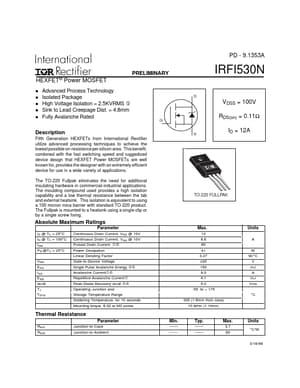

PD - 9.1353A PRELIMINARY IRFI530N D HEXFET® Power MOSFET l l l l l Advanced Process Technology Isolated Package High Voltage Isolation = 2.5KVRMS … Sink to Lead Creepage Dist. = 4.8mm Fully Avalanche Rated VDSS = 100V G S RDS(on) = 0.11Ω ID = 12A Description Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient device for use in a wide variety of applications. The TO-220 Fullpak eliminates the need for additional insulating hardware in commercial-industrial applications.
