Industry-standard pinout PQFN 3mm x 3mm Package
Compatible with Existing Surface Mount Techniques RoHS Compliant, Halogen-Free MSL1, Industrial qualification
⇒
HEXFET® Power MOSFET
S DS DS
G D D
3mm x 3mm PQFN
Benefits Multi-Vendor Compatibility Easier Manufacturing Environmentally Friendlier Increased Reliability
Base Part Number IRFH3707PbF-1
Package Type PQFN 3mm x 3mm
Standard Pack
Form
Quantity
Tape and Reel
4000
Orderable Part Number
IRFH3707TRPbF-1
Absolute Maximum Ratings
VDS.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text
IRFH3707PbF-1
VDS RDS(on) max
(@VGS = 10V)
Qg (typical) ID
(@TA = 25°C)
30 12.4 5.

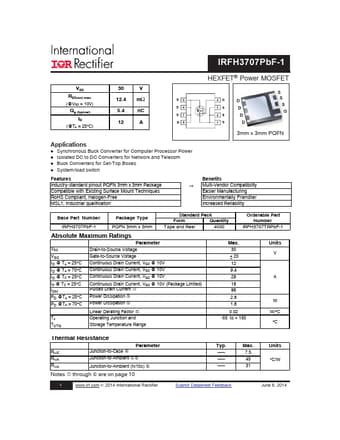

IRFH3707PBF-1 Datasheet
