IRFBA1405PPBF - Power MOSFET

International Rectifier

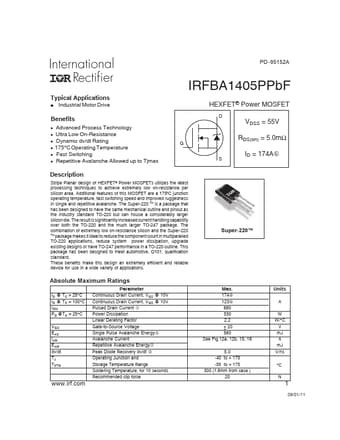

IRFBA1405PPBF Datasheet Preview — Preview of IRFBA1405PPBF PDF

Datasheet Details

Part number	IRFBA1405PPBF
Manufacturer	International Rectifier ↗
File Size	200.70 KB
Description	Power MOSFET
Datasheet	IRFBA1405PPBF_InternationalRectifier.pdf

IRFBA1405PPBF Product details

Description

Specifically designed for Automotive applications, this Stripe Planar design of HEXFET® Power MOSFETs utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area.

Features

of this MOSFET are a 175oC junction operating temperature, fast switching speed and improved ruggedness in single and repetitive avalanche. The Super-220 TM is a package that has been designed to have the same mechanical outline and pinout as the industry standard TO-220 but can house a considerably larger silicon die. The result is significantly increased current handling capability over both the TO-220 and the much larger TO-247 package. The combination of extremely low on-resistance silicon a.
