IRFB9N65, Power MOSFET

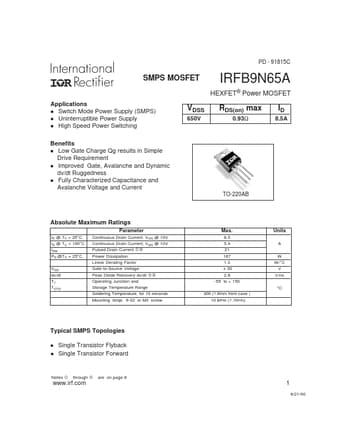

PD - 91815C SMPS MOSFET IRFB9N65A HEXFET® Power MOSFET Applications l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply l High Speed Power Switching Benefits Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and Dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l VDSS 650V RDS(on) max 0.93Ω ID 8.5A TO-220AB Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C VGS dv/dt T
