IRF7459 Power MOSFET

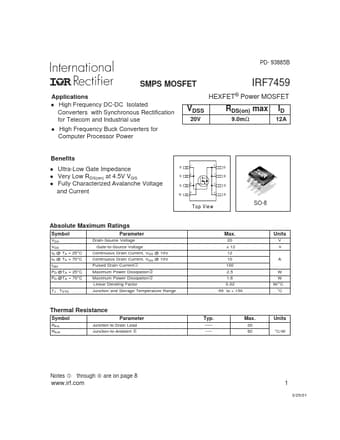

PD- 93885B SMPS MOSFET Applications l High Frequency DC-DC Isolated Converters with Synchronous Rectification for Telecom and Industrial use l IRF7459 HEXFET® Power MOSFET VDSS 20V RDS(on) max 9.0mΩ ID 12A High Frequency Buck Converters for Computer Processor Power Benefits l l l Ultra-Low Gate Impedance Very Low RDS(on) at 4.5V VGS Fully Characterized Avalanche Voltage and Current S S S G 1 8 7 A A D D D D 2 3 6 4 5 T o p V ie w SO-8 Absolute Maximum Ratings Symbol VDS VGS I.

IRF7459 Features

* A. Data and specifications subject to change without notice. This product has been designed and qualified for the Industrial market. Qualification Standards can be found on IR’s Web site. IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 25
