IRF6601 - DirectFET Power MOSFET

Description

The IRF6601 combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of an SO-8 and only 0.7 mm profile.

Features

  • consumer market. Qualification Standards can be found on IR’s Web site. IR WORLD.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRF6643TRPbF DIGITAL AUDIO MOSFET IRF
IRF6644PbF IR MOSFET Infineon
IRF6648PbF Power MOSFET Infineon
IRF6648TRPbF Power MOSFET Infineon
IRF6662PbF Power MOSFET IRF

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
IRF6603 HEXFETPower MOSFET
IRF6604 Power MOSFET
IRF6607 Power MOSFET
IRF6607TR1 Power MOSFET
IRF6608 lHEXFET Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

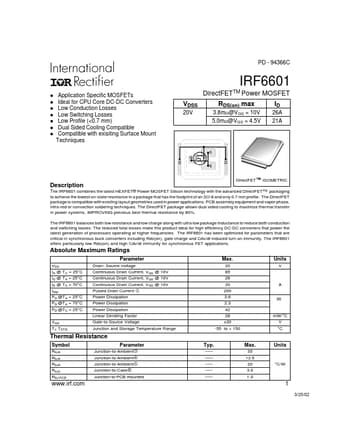

PD - 94366C IRF6601 l l l l l l l Application Specific MOSFETs Ideal for CPU Core DC-DC Converters Low Conduction Losses Low Switching Losses Low Profile (<0.7 mm) Dual Sided Cooling Compatible Compatible with exisiting Surface Mount Techniques DirectFETTM Power MOSFET VDSS 20V RDS(on) max 3.8mΩ@VGS = 10V 5.0mΩ@VGS = 4.5V ID 26A 21A Description DirectFET™ ISOMETRIC The IRF6601 combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of an SO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used in power applications, PCB assembly equipment and vapor phase, infra-red or convection soldering techniques.
