IR2130S - 3-PHASE BRIDGE DRIVER

Download the IR2130S datasheet PDF. This datasheet also covers the IR2132J variant, as both devices belong to the same 3-phase bridge driver family and are provided as variant models within a single manufacturer datasheet.

Description

The IR2130/IR2132(J)(S) is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels.

Proprietary HVIC technology enables ruggedized 28-Lead SOIC monolithic construction.

Features

  • Floating channel designed for bootstrap operation.
  • Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout for all channels Over-current shutdown turns off all six drivers Independent half-bridge drivers Matched propagation delay for all channels 2.5V logic compatible Outputs out of phase with inputs Cross-conduction.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IR2132J-InternationalRectifier.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IR2186 HIGH AND LOW SIDE DRIVER IRF
IR21864PBF HIGH AND LOW SIDE DRIVER IRF
IR21864SPBF HIGH AND LOW SIDE DRIVER IRF
IR2186S HIGH AND LOW SIDE DRIVER IRF
IR21BD Infrared Single Gas Sensor SGX

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
IR2130SPBF 3-PHASE BRIDGE DRIVER
IR2130 3-PHASE BRIDGE DRIVER
IR2130D 3-PHASE DRIVER
IR2130J 3-PHASE BRIDGE DRIVER
IR2130JPBF 3-PHASE BRIDGE DRIVER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

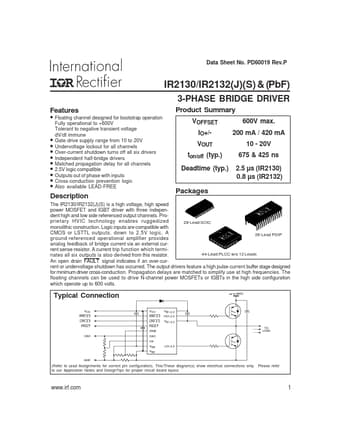

Data Sheet No. PD60019 Rev.P IR2130/IR2132(J)(S) & (PbF) 3-PHASE BRIDGE DRIVER Features • Floating channel designed for bootstrap operation • • • • • • • • • Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout for all channels Over-current shutdown turns off all six drivers Independent half-bridge drivers Matched propagation delay for all channels 2.5V logic compatible Outputs out of phase with inputs Cross-conduction prevention logic Also available LEAD-FREE Product Summary VOFFSET IO+/VOUT ton/off (typ.) Deadtime (typ.) 600V max. 200 mA / 420 mA 10 - 20V 675 & 425 ns 2.5 µs (IR2130) 0.
