IR2130 - 3-PHASE BRIDGE DRIVER

International Rectifier

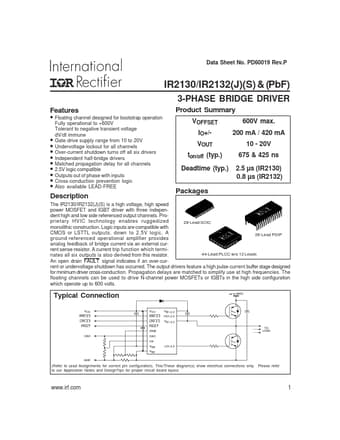

IR2130 Datasheet Preview — Preview of IR2130 PDF

Datasheet Details

Part number	IR2130
Manufacturer	International Rectifier ↗
File Size	298.48 KB
Description	3-PHASE BRIDGE DRIVER
Datasheet	IR2130_InternationalRectifier.pdf

IR2130 Product details

Description

Packages The IR2130/IR2132(J)(S) is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels.Proprietary HVIC technology enables ruggedized 28-Lead SOIC monolithic construction.Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic.A 28-Lead PDIP ground-referenced operational amplifier provides analog feedback of bridge current via an external current sense resistor.A current trip function which termi44-

Features

Floating channel designed for bootstrap operation.
Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout for all channels Over-current shutdown turns off all six drivers Independent half-bridge drivers Matched propagation delay for all channels 2.5V logic compatible Outputs out of phase with inputs Cross-conduction.
