IR1150IS - UPFC ONE CYCLE CONTROL PFC IC

Name: IR1150IS
SKU: IR1150IS-732147

International Rectifier

📥 Download Datasheet

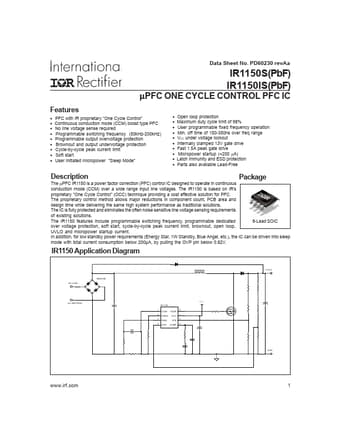

IR1150IS Datasheet Preview — Preview of IR1150IS PDF

Datasheet Details

Part number	IR1150IS
Manufacturer	International Rectifier
File Size	283.48 KB
Description	UPFC ONE CYCLE CONTROL PFC IC
Datasheet	IR1150IS_InternationalRectifier.pdf

IR1150IS Product details

Description

The µPFC IR1150 is a power factor correction (PFC) control IC designed to operate in continuous conduction mode (CCM) over a wide range input line voltages.

Features

PFC with IR proprietary “One Cycle Control” Continuous conduction mode (CCM) boost type PFC No line voltage sense required Programmable switching frequency (50kHz-200kHz) Programmable output overvoltage protection Brownout and output undervoltage protection Cycle-by-cycle peak current limit Soft start User initiated micropower “Sleep Mode”.
