IPS022G - DUAL FULLY PROTECTED POWER MOSFET SWITCH

International Rectifier

📥 Download Datasheet

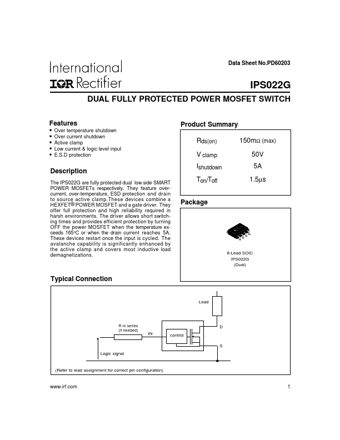

IPS022G Datasheet Preview — Preview of IPS022G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPS022G
Manufacturer	International Rectifier
File Size	95.32 KB
Description	DUAL FULLY PROTECTED POWER MOSFET SWITCH
Datasheet	IPS022G_InternationalRectifier.pdf

IPS022G Product details

Description

The IPS022G are fully protected dual low side SMART POWER MOSFETs respectively.

Features

Over temperature shutdown Over current shutdown Active clamp Low current & logic level input E. S. D protection Product Summary Rds(on) V clamp Ishutdown Ton/Toff Package 150mΩ (max) 50V 5A 1.5µs.
