HFA90NH40 Soft Recovery Diode

International Rectifier

Description

www.DataSheet4U.com PD -2.468 rev.B 02/99 HFA90NH40 HEXFRED .
HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

📥 Download Datasheet

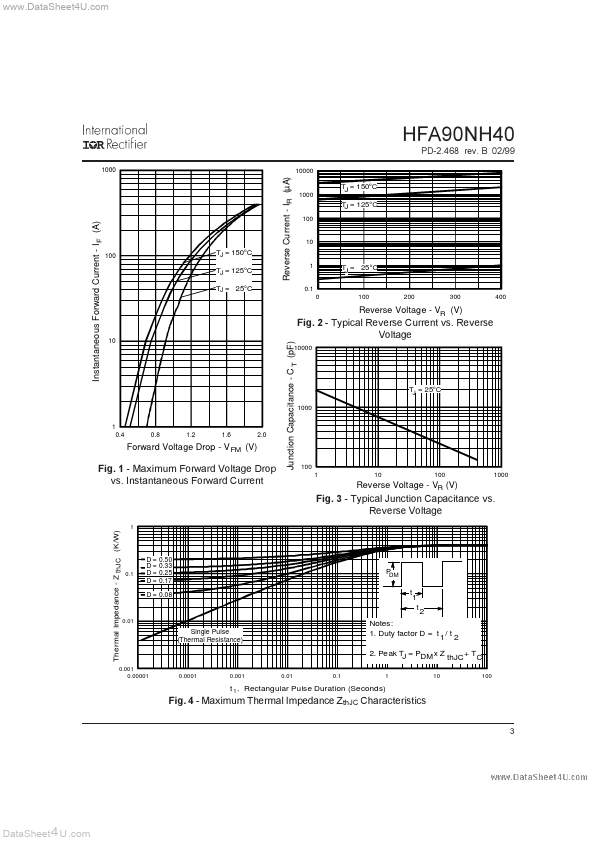

HFA90NH40 Datasheet Preview — Preview of HFA90NH40 PDF

Datasheet Specifications

Part number: HFA90NH40
Manufacturer: International Rectifier
File Size: 426.74 KB
Datasheet: HFA90NH40_InternationalRectifier.pdf
Description: Soft Recovery Diode

Features

* Reduced RFI and EMI Reduced Snubbing Extensive Characterization of Recovery Parameters TM Ultrafast, Soft Recovery Diode LUG TERMINAL ANODE a d BASE CATHODE VR = 400V VF(typ. )
* = 1V IF(AV) = 90A Qrr (typ. ) = 420nC IRRM(typ. ) = 9.3A trr(typ. ) = 36ns di(rec)M/dt (typ. )
* = 260A/µs De

Applications

* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. TM HALF-PAK Absolute Maximum Ratings (per Leg) Parameter VR IF @ TC = 25°C IF @ TC = 100°C IFSM EAS PD @ TC = 25°C PD @ TC = 100°C TJ TST
