HFA08TB120S - Soft Recovery Diode

Description

International Rectifier's HFA08TB120S is a state of the art ultra fast recovery diode.

Features

  • • • • • • • TM Ultrafast, Soft Recovery Diode (K) BASE + 2 Benefits Ultrafast Recovery Ultrasoft Recovery Very Low IRRM Very Low Qrr Guaranteed Avalanche Specified at Operating Conditions • Reduced RFI and EMI • Reduced Power Loss in Diode and Switching Transistor • Higher Frequency Operation • Reduced Snubbing • Reduced Parts Count (N/C) 1 3 _ (A) VR = 1200V VF(typ. ).
  • = 2.4V IF(AV) = 8.0A Qrr (typ. )= 140nC IRRM (typ. ) = 4.5A trr(typ. ) = 28ns di(rec)M/dt (typ. ).
  • = 85A/µs Descrip.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HFA08TB120 1200 Volt SwitchMode Single Fast Recovery Epitaxial Diode Thinki Semiconductor
HFA08TB60 Ultrafast Recovery Rectifier INCHANGE
HFA08TB60 Ultrafast Soft Recovery Diode Vishay
HFA08TB60S Ultrafast Rectifier INCHANGE
HFA08TB60S Ultrafast Soft Recovery Diode Vishay

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
HFA08TB120SPBF Soft Recovery Diode
HFA08TB120 Ultrafast/ Soft Recovery Diode
HFA08TB120PBF SOFT RECOVERY DIODE
HFA08TB60 Ultrafast/ Soft Recovery Diode
HFA08TB60PbF Soft Recovery Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

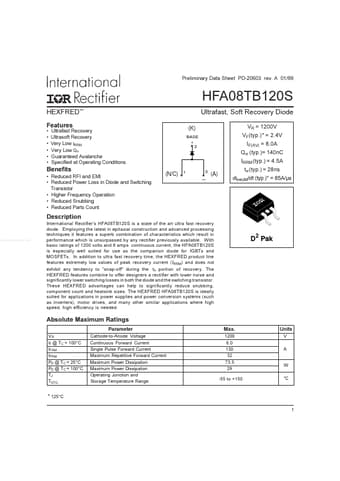

Preliminary Data Sheet PD-20603 rev. A 01/99 HFA08TB120S HEXFRED Features • • • • • • TM Ultrafast, Soft Recovery Diode (K) BASE + 2 Benefits Ultrafast Recovery Ultrasoft Recovery Very Low IRRM Very Low Qrr Guaranteed Avalanche Specified at Operating Conditions • Reduced RFI and EMI • Reduced Power Loss in Diode and Switching Transistor • Higher Frequency Operation • Reduced Snubbing • Reduced Parts Count (N/C) 1 3 _ (A) VR = 1200V VF(typ.)* = 2.4V IF(AV) = 8.0A Qrr (typ.)= 140nC IRRM (typ.) = 4.5A trr(typ.) = 28ns di(rec)M/dt (typ.)* = 85A/µs Description www.DataSheet4U.com International Rectifier's HFA08TB120S is a state of the art ultra fast recovery diode.
