AUIRFR4104 - Power MOSFET

Description

Specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area.

Features

  • l l l l l l l HEXFET® Power MOSFET D AUIRFR4104 AUIRFU4104 40V 5.5mΩ 119A 42A Advanced Process Technology Ultra Low On-Resistance 175°C Operating Temperature Fast Switching Repetitive Avalanche Allowed up to Tjmax Lead-Free, RoHS Compliant Automotive Qualified.
  • V(BR)DSS RDS(on) max. ID (Silicon Limited) G S ID (Package Limited) www. DataSheet4U. com.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AUIRFR4105Z Power MOSFET Infineon
AUIRFR4292 Power MOSFET Infineon
AUIRFR4620 Power MOSFET Infineon
AUIRFR48Z Power MOSFET Infineon
AUIRFR024N Power MOSFET Infineon

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
AUIRFR4105 Power MOSFET
AUIRFR4105Z HEXFET Power MOSFET
AUIRFR4292 Power MOSFET
AUIRFR4615 Power MOSFET
AUIRFR4620 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

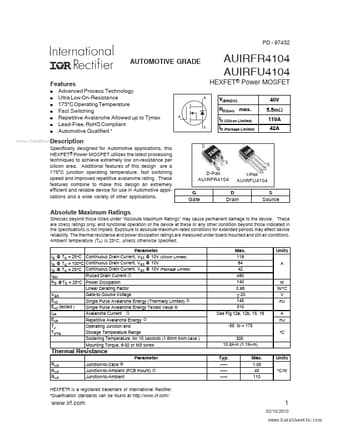

PD - 97452 AUTOMOTIVE GRADE Features l l l l l l l HEXFET® Power MOSFET D AUIRFR4104 AUIRFU4104 40V 5.5mΩ 119A 42A Advanced Process Technology Ultra Low On-Resistance 175°C Operating Temperature Fast Switching Repetitive Avalanche Allowed up to Tjmax Lead-Free, RoHS Compliant Automotive Qualified * V(BR)DSS RDS(on) max. ID (Silicon Limited) G S ID (Package Limited) www.DataSheet4U.com Description Specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating .
