AUIRF1010EZ - Power MOSFET

General Description

www.DataSheet4U.com Specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area.

Key Features

  • O O O O O O O Advanced Process Technology Ultra Low On-Resistance 175°C Operating Temperature Fast Switching Repetitive Avalanche Allowed up to Tjmax Lead-Free, RoHS Compliant Automotive Qualified.
  • HEXFET® Power MOSFET D AUIRF1010EZ AUIRF1010EZS AUIRF1010EZL 60V 8.5mΩ 84A 75A D V(BR)DSS RDS(on) max. ID (Silicon Limited) G S ID (Package Limited) D.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AUIRF1010EZ Power MOSFET Infineon
AUIRF1010EZL Power MOSFET Infineon
AUIRF1010EZS Power MOSFET Infineon
AUIRF1010Z Power MOSFET Infineon
AUIRF1010ZL Power MOSFET Infineon

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
AUIRF1010EZL Power MOSFET
AUIRF1010EZS Power MOSFET
AUIRF1010Z Power MOSFET
AUIRF1010ZL Power MOSFET
AUIRF1010ZS Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

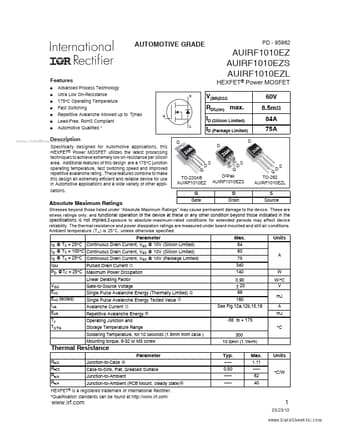

AUTOMOTIVE GRADE PD - 95962 Features O O O O O O O Advanced Process Technology Ultra Low On-Resistance 175°C Operating Temperature Fast Switching Repetitive Avalanche Allowed up to Tjmax Lead-Free, RoHS Compliant Automotive Qualified * HEXFET® Power MOSFET D AUIRF1010EZ AUIRF1010EZS AUIRF1010EZL 60V 8.5mΩ 84A 75A D V(BR)DSS RDS(on) max. ID (Silicon Limited) G S ID (Package Limited) D Description www.DataSheet4U.com Specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating .
