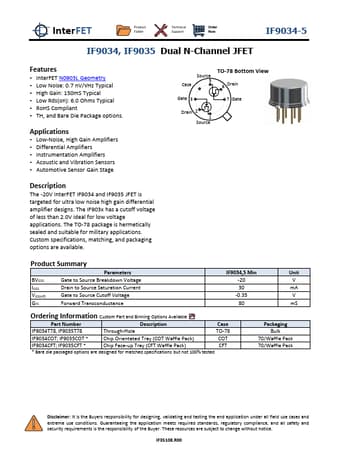

IF9034-5
IF9034, IF9035 Dual N-Channel JFET
Features
• InterFET N0903L Geometry • Low Noise: 0.7 nV/√Hz Typical • High Gain: 150mS Typical • Low Rds(on): 6.0 Ohms Typical • RoHS Compliant • TH, and Bare Die Package options.
Applications
• Low-Noise, High Gain Amplifiers • Differential Amplifiers • Instrumentation Amplifiers • Acoustic and Vibration Sensors • Automotive Sensor Gain Stage
TO-78 Bottom View
Source
Case
5
6 Drain
Gate 3
7 Gate
Drain 2 1
Source
Description
The -20V InterFET IF9034 and IF9035 JFET is targeted for ultra low noise high gain differential amplifier designs. The IF903x has a cutoff voltage of less than 2.0V ideal for low voltage applications.
IF9034 Datasheet
