DA82562EZ - 10/100 Mbps Platform LAN Connect

Description

at any time, without notice.

Features

IEEE 802.3 10BASE-T/100BASE-TX compliant physical layer interface IEEE 802.3u Auto-Negotiation support Digital Adaptive Equalization control Link status interrupt capability XOR tree mode support 3-port LED support (speed, link and activity) 10BASE-T auto-polarity correction LAN Connect interface 82540EM layout compatible.
Diagnostic loopback mode 1:1 transmit transformer ratio support L.

Intel

📥 Download Datasheet

Datasheet Details

Part number	DA82562EZ
Manufacturer	Intel
File Size	283.26 KB
Description	10/100 Mbps Platform LAN Connect
Datasheet	DA82562EZ Datasheet

📁 Similar Datasheet

DA8110A - Rectifier Arrays (Diotec Semiconductor)
DA8110K - Rectifier Arrays (Diotec Semiconductor)
DA811A - Rectifier Arrays (Diotec Semiconductor)
DA811AK - Rectifier Arrays (Diotec Semiconductor)
DA811K - Rectifier Arrays (Diotec Semiconductor)
DA814A - Rectifier Arrays (Diotec Semiconductor)
DA814K - Rectifier Arrays (Diotec Semiconductor)

Other Datasheets by Intel

DA82562ET - 10/100 Mbps Platform LAN Connect
DA82562EX - 10/100 Mbps Platform LAN Connect

Full PDF Text Transcription

Click to expand full text

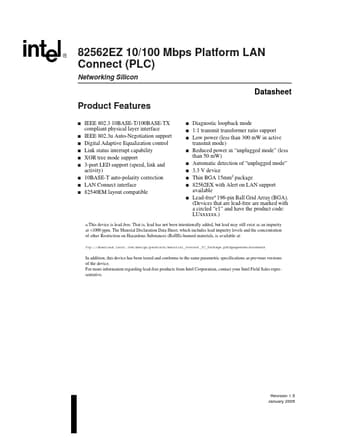

82562EZ 10/100 Mbps Platform LAN Connect (PLC) Networking Silicon Datasheet Product Features ■ ■ ■ ■ ■ ■ ■ ■ ■ IEEE 802.3 10BASE-T/100BASE-TX compliant physical layer interface IEEE 802.3u Auto-Negotiation support Digital Adaptive Equalization control Link status interrupt capability XOR tree mode support 3-port LED support (speed, link and activity) 10BASE-T auto-polarity correction LAN Connect interface 82540EM layout compatible ■ ■ ■ ■ ■ ■ ■ ■ ■ Diagnostic loopback mode 1:1 transmit transformer ratio support Low power (less than 300 mW in active transmit mode) Reduced power in “unplugged mode” (less than 50 mW) Automatic detection of “unplugged mode” 3.3 V device Thin BGA 15mm2 package 82562EX with Alert on LAN support available Lead-freea 196-pin Ball Grid Array (BGA).
