82434NX PCI/ CACHE AND MEMORY CONTROLLER PCMC

2 1 Host Interface 2 2 DRAM Interface 2 3 Cache Interface 2 4 PCI Interface 2 5 LBX Interface 2 6 Reset And Clock 3 0 REGISTER DESCRIPTION 3 1 I O Mapped Registers 3 1 1 CONFADD CONFIGURATION ADDRESS REGISTER 3 1 2 CSE CONFIGURATION SPACE ENABLE REGISTER 3 1 3 TRC TURBO-RESET CONTROL REGISTER 3 1 4.

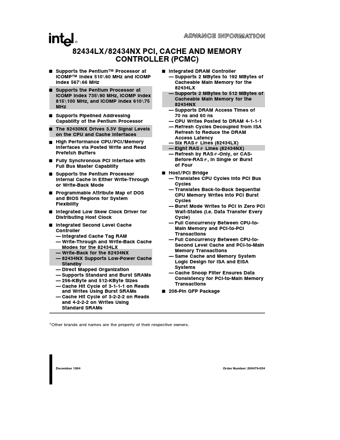

82434LX 82434NX PCI CACHE AND MEMORY CONTROLLER (PCMC) Y Supports the Pentium TM Processor at iCOMP TM Index 510T60 MHz and iCOMP Index 567T66 MHz Supports the Pentium Processor at iCOMP Index 735T90 MHz iCOMP Index 815T100 MHz and iCOMP Index 610T75 MHz Supports Pipelined Addressing Capability of the Pentium Processor The 82430NX Drives 3 3V Signal Levels on the CPU and Cache Interfaces High Performance CPU PCI Memory Interfaces via Posted Write and Read Prefetch Buffers Fully Synchronous PCI .

82434NX Features
