IS64VPS25618A - 4Mb SYNCHRONOUS PIPELINED SINGLE CYCLE DESELECT STATIC RAM

Download the IS64VPS25618A datasheet PDF (IS61LPS12836A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 4mb synchronous pipelined single cycle deselect static ram.

Description

The  ISSI IS61(64)LPS12832A, IS61(64)LPS/VP- S12836A and IS61(64)LPS/VPS25618A are high-speed, low-power synchronous static RAMs designed to provide burstable, high-performance memory for communication and networking applications.The IS61(64)LPS12832A is organized as 131,072 words by 32 bits.The IS6

Features

  • Internal self-timed write cycle.
  • Individual Byte Write Control and Global Write.
  • Clock controlled, registered address, data and control.
  • Burst sequence control using MODE input.
  • Three chip enable option for simple depth ex- pansion and address pipelining.
  • Common data inputs and data outputs.
  • Auto Power-down during deselect.
  • Single cycle deselect.
  • Snooze MODE for reduced-power standby.
  • Power Supply LPS: V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS61LPS12836A_IntegratedSiliconSolution.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by Integrated Silicon Solution
  • IS64VPS12836A - 4Mb SYNCHRONOUS PIPELINED SINGLE CYCLE DESELECT STATIC RAM
  • IS64C25616AL - 256K x 16 HIGH-SPEED CMOS STATIC RAM
  • IS64C25616AS - 256K x 16 HIGH-SPEED CMOS STATIC RAM
  • IS64C6416AL - 64K x 16 HIGH-SPEED CMOS STATIC RAM
  • IS64LPS12832A - 4Mb SYNCHRONOUS PIPELINED SINGLE CYCLE DESELECT STATIC RAM
  • IS64LPS12836A - 4Mb SYNCHRONOUS PIPELINED SINGLE CYCLE DESELECT STATIC RAM
  • IS64LPS25618A - 4Mb SYNCHRONOUS PIPELINED SINGLE CYCLE DESELECT STATIC RAM
  • IS64LV51216 - (IS61LV51216 / IS64LV51216) 512K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM

Full PDF Text Transcription

Click to expand full text

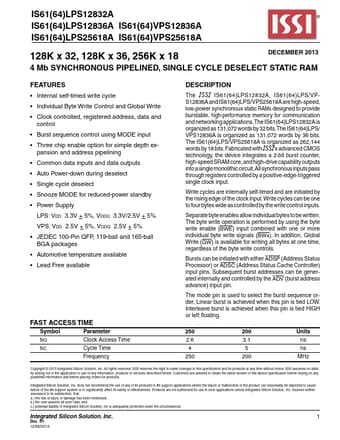

IS61(64)LPS12832A IS61(64)LPS12836A IS61(64)VPS12836A IS61(64)LPS25618A IS61(64)VPS25618A 128K x 32, 128K x 36, 256K x 18 DECEMBER 2013 4 Mb SYNCHRONOUS PIPELINED, Single CYCLE DESELECT STATIC RAM FEATURES • Internal self-timed write cycle • Individual Byte Write Control and Global Write • Clock controlled, registered address, data and control • Burst sequence control using MODE input • Three chip enable option for simple depth ex- pansion and address pipelining • Common data inputs and data outputs • Auto Power-down during deselect • Single cycle deselect • Snooze MODE for reduced-power standby • Power Supply LPS: Vdd 3.3V + 5%, Vddq 3.3V/2.5V + 5% VPS: Vdd 2.5V + 5%, Vddq 2.
