IS61VPS204818A, IS61LPS204818A - 36Mb Single CYCLE DESELECT STATIC RAM

Integrated Silicon Solution

📥 Download Datasheet

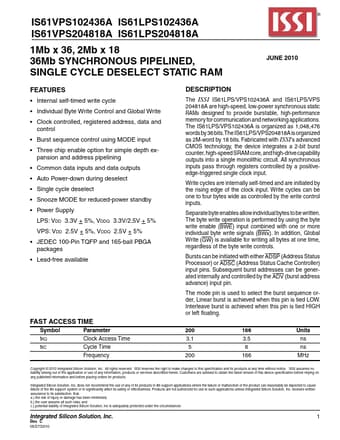

IS61VPS204818A Datasheet Preview — This datasheet PDF includes multiple part numbers: IS61VPS204818A, IS61LPS204818A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS61VPS204818A, IS61LPS204818A
Manufacturer	Integrated Silicon Solution
File Size	385.02 KB
Description	36Mb Single CYCLE DESELECT STATIC RAM
Datasheet	IS61LPS204818A_IntegratedSiliconSolution.pdf
Note	This datasheet PDF includes multiple part numbers: IS61VPS204818A, IS61LPS204818A. Please refer to the document for exact specifications by model.

IS61VPS204818A Product details

Description

The ISSI IS61LPS/VPS102436A and IS61LPS/VPS 204818A are high-speed, low-power synchronous static RAMs designed to provide burstable, high-performance memory for communication and networking applications.The IS61LPS/VPS102436A is organized as 1,048,476 words by 36 bits.The IS61LPS/VPS204818A is organized as 2M-word by 18 bits.Fabricated with ISSI's advanced CMOS technology, the device integrates a 2-bit burst counter, high-speed SRAM core, and high-drive capability outputs into a single monoli

Features

Internal self-timed write cycle.
Individual Byte Write Control and Global Write.
Clock controlled, registered address, data and control.
Burst sequence control using MODE input.
Three chip enable option for simple depth ex- pansion and address pipelining.
Common data inputs and data outputs.
Auto Power-down during deselect.
Single cycle deselect.
Snooze MODE for reduced-power standby.
Power Supply LPS: V.
