IS28F020 - 262144 x 8 CMOS Flash Memory

Name: IS28F020
SKU: IS28F020-517961

Integrated Silicon Solution

The IS28F020 by Integrated Silicon Solution is a 262144 x 8 CMOS Flash Memory. Below is the official datasheet preview.

Datasheet Details

Part number	IS28F020
Manufacturer	Integrated Silicon Solution
File Size	164.12 KB
Description	262144 x 8 CMOS Flash Memory
Datasheet	IS28F020_IntegratedSiliconSolution.pdf

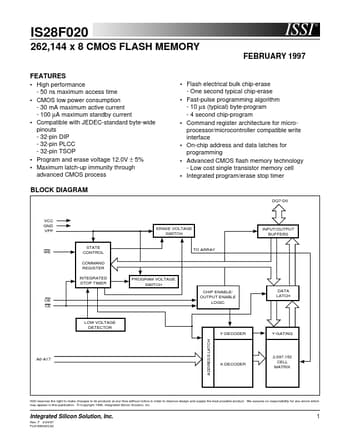

Additional preview pages of the IS28F020 datasheet.

High performance - 50 ns maximum access time.
CMOS low power consumption - 30 mA maximum active current - 100 µA maximum standby current.
Compatible with JEDEC-standard byte-wide pinouts - 32-pin DIP - 32-pin PLCC - 32-pin TSOP.
Program and erase voltage 12.0V ± 5%.
Maximum latch-up immunity through advanced CMOS process BLOCK.
