IS89C52-12WI - CMOS SINGLE CHIP 8-BIT MICROCONTROLLER with 8-Kbytes of FLASH

Download the IS89C52-12WI datasheet PDF (IS8 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for cmos single chip 8-bit microcontroller with 8-kbytes of flash.

Description

ISSI® ®

Features

  • 80C51 based architecture.
  • 8-Kbytes of on-chip Reprogrammable Flash Memory.
  • 256 x 8 RAM.
  • Three 16-bit Timer/Counters.
  • Full duplex serial channel.
  • Boolean processor.
  • Four 8-bit I/O ports, 32 I/O lines.
  • Memory addressing capability.
  • 64K ROM and 64K RAM.
  • Program memory lock.
  • Lock bits (3).
  • Power save modes:.
  • Idle and power-down.
  • Eight interrupt sources.
  • Most instruc.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS8-9C52.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • IS801 - Transformer Driver (AnalogySemi)
  • IS80C31 - CMOS SINGLE CHIP 8-BIT MICROCONTROLLER (ISSI)
  • IS80C32 - CMOS SINGLE CHIP LOW VOLTAGE 8-BIT MICROCONTROLLER (Integrated Silicon Solution)
  • IS80C51 - CMOS SINGLE CHIP 8-BIT MICROCONTROLLER (ISSI)
  • IS80C52 - CMOS SINGLE CHIP LOW VOLTAGE 8-BIT MICROCONTROLLER (Integrated Silicon Solution)
  • IS80LV32 - CMOS SINGLE CHIP LOW VOLTAGE 8-BIT MICROCONTROLLER (ISSI)
  • IS80LV52 - CMOS SINGLE CHIP LOW VOLTAGE 8-BIT MICROCONTROLLER (ISSI)
  • IS829 - OPTICALLY COUPLED ISOLATOR TRANSISTOR OUTPUT (ISOCOM)
  • IS82C237 - CMOS High Performance Programmable DMA Controller (Intersil Corporation)
  • IS82C237-12 - CMOS High Performance Programmable DMA Controller (Intersil Corporation)
Other Datasheets by Integrated Silicon Solution Inc
  • IS89C52-12W - CMOS SINGLE CHIP 8-BIT MICROCONTROLLER with 8-Kbytes of FLASH
  • IS89C52-12PL - CMOS SINGLE CHIP 8-BIT MICROCONTROLLER with 8-Kbytes of FLASH
  • IS89C52-12PLI - CMOS SINGLE CHIP 8-BIT MICROCONTROLLER with 8-Kbytes of FLASH
  • IS89C52-12PQ - CMOS SINGLE CHIP 8-BIT MICROCONTROLLER with 8-Kbytes of FLASH
  • IS89C52-12PQI - CMOS SINGLE CHIP 8-BIT MICROCONTROLLER with 8-Kbytes of FLASH
  • IS89C52-24PL - CMOS SINGLE CHIP 8-BIT MICROCONTROLLER with 8-Kbytes of FLASH
  • IS89C52-24PLI - CMOS SINGLE CHIP 8-BIT MICROCONTROLLER with 8-Kbytes of FLASH
  • IS89C52-24PQ - CMOS SINGLE CHIP 8-BIT MICROCONTROLLER with 8-Kbytes of FLASH

Full PDF Text Transcription

Click to expand full text

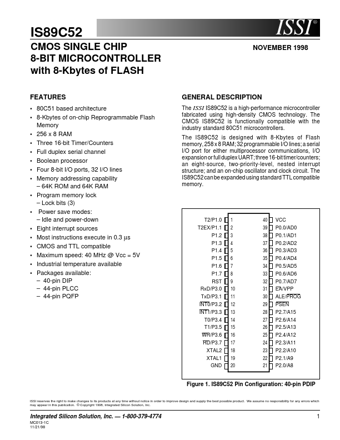

IS89C52 IS89C52 CMOS SINGLE CHIP 8-BIT MICROCONTROLLER with 8-Kbytes of FLASH ISSI NOVEMBER 1998 GENERAL DESCRIPTION ISSI® ® FEATURES • 80C51 based architecture • 8-Kbytes of on-chip Reprogrammable Flash Memory • 256 x 8 RAM • Three 16-bit Timer/Counters • Full duplex serial channel • Boolean processor • Four 8-bit I/O ports, 32 I/O lines • Memory addressing capability – 64K ROM and 64K RAM • Program memory lock – Lock bits (3) • Power save modes: – Idle and power-down • Eight interrupt sources • Most instructions execute in 0.
