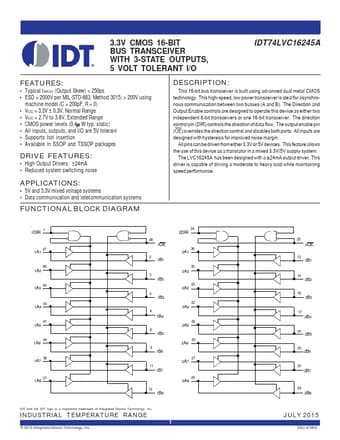

IDT74LVC16245A - 3.3V CMOS 16-BIT BUS TRANSCEIVER

Integrated Device

Datasheet Details

Part number	IDT74LVC16245A
Manufacturer	Integrated Device
File Size	119.11 KB
Description	3.3V CMOS 16-BIT BUS TRANSCEIVER
Datasheet	IDT74LVC16245A_IntegratedDeviceTechnology.pdf

This 16-bit bus transceiver is built using advanced dual metal CMOS technology.

Typical tSK(o) (Output Skew) < 250ps.
ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0).
VCC = 3.3V ± 0.3V, Normal Range.
VCC = 2.7V to 3.6V, Extended Range.
CMOS power levels (0.4μ W typ. static).
All inputs, outputs, and I/O are 5V tolerant.
Supports hot insertion.
Available in SSOP and TSSOP packages DRIVE.
