IDT54FCT827CT - FAST CMOS 10-BIT BUFFERS

Description

The FCT827T is built using an advanced dual metal CMOS technology.

The FCT827T/FCT2827T 10-bit bus drivers provide highperformance bus interface buffering for wide data/address paths or buses carrying parity.

The 10-bit buffers have NANDed output enables for maximum control flexibility.

Features

  • or FCT827T:.
  • A, B, C and D speed grades.
  • High drive outputs (-15mA IOH, 48mA IOL).
  • Features for FCT2827T:.
  • A, B and C speed grades.
  • Resistor outputs (-15mA IOH, 12mA IOL Com. ) (-12mA IOH, 12mA IOL Mil. ).
  • Reduced system switching noise.

📥 Download Datasheet

Datasheet Details

Part number IDT54FCT827CT
Manufacturer Integrated Device
File Size 127.57 KB
Description FAST CMOS 10-BIT BUFFERS
Datasheet download datasheet IDT54FCT827CT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDT54FCT810CT FAST CMOS BUFFER/CLOCK DRIVER IDT
IDT54FCT138A FAST CMOS 1-OF-8 DECODER IDT
IDT54FCT138AT FAST CMOS 1-OF-8 DECODER IDT
IDT54FCT139A FAST CMOS DUAL 1-OF-4 DECODER IDT
IDT54FCT139C FAST CMOS DUAL 1-OF-4 DECODER IDT

Other Datasheets by Integrated Device

Part Number Description
IDT54FCT827C HIGH-PERFORMANCE CMOS BUFFERS
IDT54FCT827A HIGH-PERFORMANCE CMOS BUFFERS
IDT54FCT827AT FAST CMOS 10-BIT BUFFERS
IDT54FCT827B HIGH-PERFORMANCE CMOS BUFFERS
IDT54FCT827BT FAST CMOS 10-BIT BUFFERS

Full PDF Text Transcription

Click to expand full text

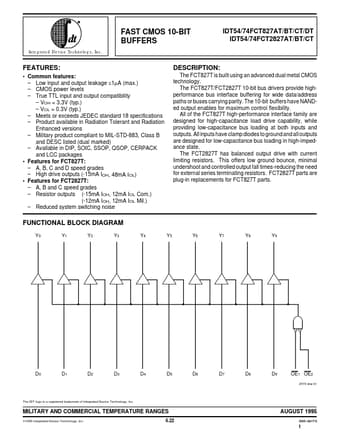

IDT54/74FCT827AT/BT/CT/DT, IDT54/74FCT2827AT/BT/CT HIGH-PERFORMANCE CMOS BUFFERS MILITARY AND COMMERCIAL TEMPERATURE RANGES FAST CMOS 10-BIT BUFFERS Integrated Device Technology, Inc. IDT54/74FCT827AT/BT/CT/DT IDT54/74FCT2827AT/BT/CT FEATURES: • Common features: – Low input and output leakage ≤1µA (max.) – CMOS power levels – True TTL input and output compatibility – VOH = 3.3V (typ.) – VOL = 0.3V (typ.
