IDT54FCT162244ET - FAST CMOS 16-BIT BUFFER/LINE DRIVER

Integrated Device

📥 Download Datasheet

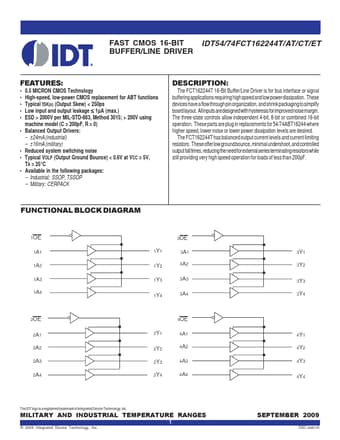

IDT54FCT162244ET Datasheet Preview — Preview of IDT54FCT162244ET PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT54FCT162244ET
Manufacturer	Integrated Device
File Size	64.87 KB
Description	FAST CMOS 16-BIT BUFFER/LINE DRIVER
Datasheet	IDT54FCT162244ET_IntegratedDeviceTechnology.pdf

IDT54FCT162244ET Product details

Description

The 16-Bit Buffer/Line Driver is for bus interface or signal buffering applications requiring high speed and low power dissipation.

Features

FCT16244T/AT/CT/ET:.
High drive outputs (-32mA IOH, 64mA IOL).
Power off disable outputs permit “live insertion”.
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
Features for FCT162244T/AT/CT/ET:.
Balanced Output Drivers: ±24mA (commercial), ±16mA (military).
Reduced system switching noise.
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C.
Features for FCT166244T/AT/CT:.
Light Dri.
