IDT74LVCH244A - 3.3V CMOS OCTAL BUFFER/DRIVER

Description

5V and 3.3V mixed voltage systems Data communication and telecommunication systems FUNCTIONAL BLOCK DIAGRAM 1OE 1 2OE 19 1A1 2 18 1Y1 2A1 11 9 2Y1 1A2 4 16 1Y2 2A2 13 7 2Y2 1A3 6 14 1Y3 2A3 15 5 2Y3 1A4 8 12 1Y4 2A4 17 3 2Y4 The IDT logo is

Features

  • DRIVE.

📥 Download Datasheet

Datasheet Details

Part number IDT74LVCH244A
Manufacturer Integrated Device Technology
File Size 100.19 KB
Description 3.3V CMOS OCTAL BUFFER/DRIVER
Datasheet download datasheet IDT74LVCH244A Datasheet

📁 Similar Datasheet

  • IDT74LVCH2244A - 3.3V CMOS OCTAL BUFFER/DRIVER WITH 3- STATE OUTPUTS/ 5 VOLT TOLERANT I/O/ BUS-HOLD (Integrated Device)
  • IDT74LVCH162244A - 3.3V CMOS 16-BIT BUFFER/DRIVER (Renesas)
  • IDT74LVCH162245A - 3.3V CMOS 16-BIT BUS TRANSCEIVER (Integrated Device)
  • IDT74LVCH162245A - 3.3V CMOS 16-BIT BUS TRANSCEIVER (Renesas)
  • IDT74LVCH162373A - 3.3V CMOS 16-BIT TRANSPARENT D-TYPE LATCH (IDT)
  • IDT74LVCH16245A - 3.3V CMOS 16-BIT BUS TRANSCEIVER (Integrated Device)
  • IDT74LVCHR162245A - 3.3V CMOS 16-BIT BUS TRANSCEIVER (Renesas)
  • IDT74LVC07A - 3.3V CMOS HEX BUFFER/DRIVER WITH OPEN-DRAIN OUTPUTS AND 5 VOLT TOLERANT I/O (Integrated Device)
  • IDT74LVC11A - 3.3V CMOS TRIPLE 3-INPUT AND GATE WITH 5 VOLT TOLERANT I/O (Integrated Device)
  • IDT74LVC125A - 3.3V CMOS QUADRUPLE BUS BUFFER GATE WITH 3-STATE OUTPUTS AND 5 VOLT TOLERANT I/O (Integrated Device)
Other Datasheets by Integrated Device Technology

Full PDF Text Transcription

Click to expand full text

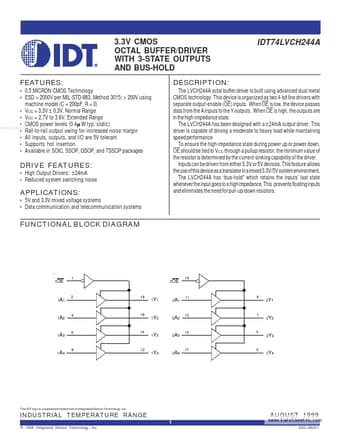

IDT74LVCH244A 3.3V CMOS OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS AND BUS-HOLD • 0.5 MICRON CMOS Technology • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) • VCC = 3.3V ± 0.3V, Normal Range • VCC = 2.7V to 3.6V, Extended Range • CMOS power levels (0.4µ W typ. static) www.DataSheet4U.com • Rail-to-rail output swing for increased noise margin • All inputs, outputs, and I/O are 5V tolerant • Supports hot insertion • Available in SOIC, SSOP, QSOP, and TSSOP packages IDT74LVCH244A FEATURES: DRIVE FEATURES: APPLICATIONS: • High Output Drivers: ±24mA • Reduced system switching noise The LVCH244A octal buffer/driver is built using advanced dual metal CMOS technology.
