IDT74CBTLV16214 - LOW-VOLTAGE 12-BIT 3:1 MUX / DEMUX BUS SWITCH

Integrated Device Technology

📥 Download Datasheet

IDT74CBTLV16214 Datasheet Preview — Preview of IDT74CBTLV16214 PDF

Datasheet Details

Part number	IDT74CBTLV16214
Manufacturer	Integrated Device Technology
File Size	89.32 KB
Description	LOW-VOLTAGE 12-BIT 3:1 MUX / DEMUX BUS SWITCH
Datasheet	IDT74CBTLV16214_IntegratedDeviceTechnology.pdf

IDT74CBTLV16214 Product details

Description

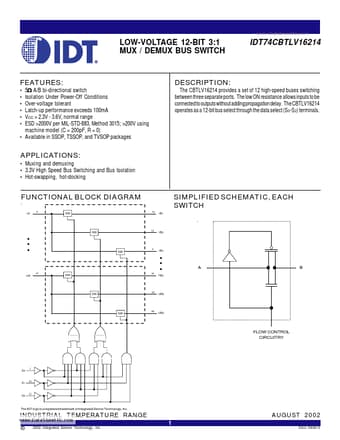

The CBTLV16214 provides a set of 12 high-speed buses switching between three separate ports. Muxing and demuxing 3.3V High Speed Bus Switching and Bus Isolation Hot-swapping, hot-docking FUNCTIONAL BLOCK DIAGRAM 1A 2 SIMPLIFIED SCHEMATIC, EACH SWITCH 54 1B1 SW

Features

5Ω A/B bi-directional switch Isolation Under Power-Off Conditions Over-voltage tolerant Latch-up performance exceeds 100mA VCC = 2.3V - 3.6V, normal range ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0).
Available in SSOP, TSSOP, and TVSOP packages.
