IDT74ALVCH16721 - 3.3V CMOS 20-BIT FLIP-FLOP

Integrated Device Technology

📥 Download Datasheet

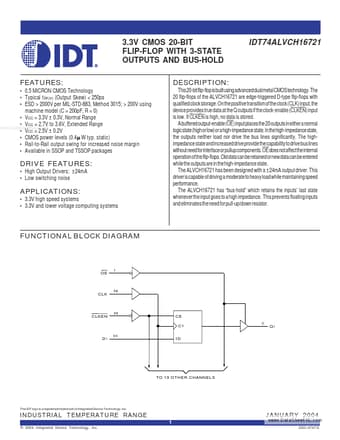

IDT74ALVCH16721 Datasheet Preview — Preview of IDT74ALVCH16721 PDF

Datasheet Details

Part number	IDT74ALVCH16721
Manufacturer	Integrated Device Technology
File Size	99.85 KB
Description	3.3V CMOS 20-BIT FLIP-FLOP
Datasheet	IDT74ALVCH16721_IntegratedDeviceTechnology.pdf

IDT74ALVCH16721 Product details

Description

IDT74ALVCH16721 0.5 MICRON CMOS Technology Typical tSK(o) (Output Skew) < 250ps ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) VCC = 3.3V ± 0.3V, Normal Range VCC = 2.7V to 3.6V, Extended Range www.DataSheet4U.com VCC = 2.5V ± 0.2V CMOS power levels (0.4µ W typ. Rail-to-Rail output swing for increased noise margin Available in SSOP and TSSOP packages DRIV
