IDT72V7280, IDT72V72100 - (16384 x 72)3.3 VOLT HIGH-DENSITY SUPERSYNC II 72-BIT FIFO

Integrated Device Technology

📥 Download Datasheet

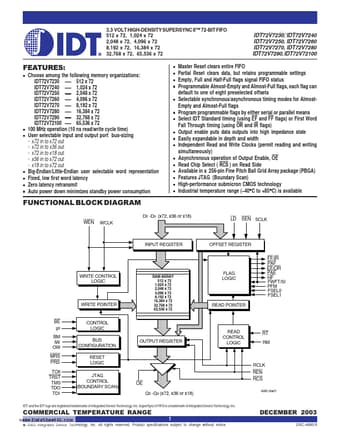

IDT72V7280 Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT72V7280, IDT72V72100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IDT72V7280, IDT72V72100
Manufacturer	Integrated Device Technology
File Size	492.63 KB
Description	(16384 x 72)3.3 VOLT HIGH-DENSITY SUPERSYNC II 72-BIT FIFO
Datasheet	IDT72V72100_IntegratedDeviceTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: IDT72V7280, IDT72V72100. Please refer to the document for exact specifications by model.

IDT72V7280 Product details

Description

The IDT72V7230/72V7240/72V7250/72V7260/72V7270/72V7280/ 72V7290/72V72100 are exceptionally deep, high speed, CMOS First-In-FirstOut (FIFO) memories with clocked read and write controls and a flexible BusMatching x72/x36/x18 data flow. Flexible x72/x36/x18 Bus-Matching on both read and write ports The period required by the retransmit operation is fixed and short. The first word data latency period, from the time the firs

Features

Choose among the following memory organizations: IDT72V7230  512 x 72 IDT72V7240  1,024 x 72 IDT72V7250  2,048 x 72 IDT72V7260  4,096 x 72 IDT72V7270  8,192 x 72 IDT72V7280  16,384 x 72 IDT72V7290  32,768 x 72 IDT72V72100  65,536 x 72 100 MHz operation (10 ns read/write cycle time) User selectable input and output port bus-sizing - x72 in to x72 out - x72 in to x36 out - x72 in to x18 out - x36 in to x72 out - x18.
