IDT72V70800 - 3.3 VOLT TIME SLOT INTERCHANGE DIGITAL SWITCH

Description

The IDT72V70800 is a non-blocking digital switch that has a capacity of 512 x 512 channels at a serial bit rate of 8.192 Mb/s.

Features

  • IDT72V70800 512 x 512 channel non-blocking switching at 8.192 Mb/s Per-channel variable or constant throughput delay Automatic identification of ST-BUS®/GCI interfaces Accepts 4 Serial Data Streams of 8.192 Mb/s Automatic frame offset delay measurement.
  • Per-stream frame delay offset programming.
  • Per-channel high impedance output control.
  • Per-channel Processor Mode.
  • Control inter.

📥 Download Datasheet

Datasheet Details

Part number IDT72V70800
Manufacturer Integrated Device Technology
File Size 148.11 KB
Description 3.3 VOLT TIME SLOT INTERCHANGE DIGITAL SWITCH
Datasheet download datasheet IDT72V70800 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDT72V70800 TIME SLOT INTERCHANGE DIGITAL SWITCH Renesas
IDT72V70810 3.3 VOLT Time SLOT INTERCHANGE DIGITAL SWITCH Renesas
IDT72V70810 3.3 VOLT Time SLOT INTERCHANGE DIGITAL SWITCH IDT
IDT72V70190 3.3 VOLT TIME SLOT INTERCHANGE DIGITAL SWITCH IDT
IDT72V70190 3.3 VOLT TIME SLOT INTERCHANGE DIGITAL SWITCH Renesas

Other Datasheets by Integrated Device Technology

Part Number Description
IDT72V70840 3.3 VOLT TIME SLOT INTERCHANGE DIGITAL SWITCH
IDT72V70200 3.3 VOLT TIME SLOT INTERCHANGE DIGITAL SWITCH
IDT72V70210 3.3 VOLT TIME SLOT INTERCHANGE DIGITAL SWITCH
IDT72V72100 (65536 x 72)3.3 VOLT HIGH-DENSITY SUPERSYNC II 72-BIT FIFO
IDT72V7230 (512 x 72)3.3 VOLT HIGH-DENSITY SUPERSYNC II 72-BIT FIFO

Full PDF Text Transcription

Click to expand full text

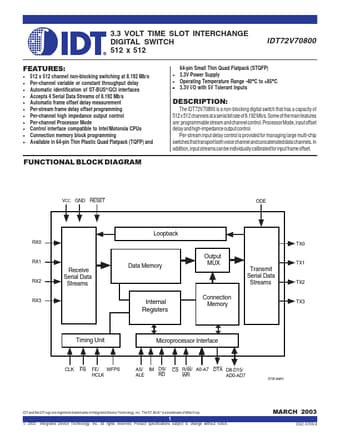

3.3 VOLT TIME SLOT INTERCHANGE DIGITAL SWITCH 512 x 512 FEATURES: • • • • • • • • IDT72V70800 512 x 512 channel non-blocking switching at 8.192 Mb/s Per-channel variable or constant throughput delay Automatic identification of ST-BUS®/GCI interfaces Accepts 4 Serial Data Streams of 8.192 Mb/s Automatic frame offset delay measurement • Per-stream frame delay offset programming • Per-channel high impedance output control • Per-channel Processor Mode • Control interface compatible to Intel/Motorola CPUs • Connection memory block programming •· Available in 64-pin Thin Plastic Quad Flatpack (TQFP) and 64-pin Small Thin Quad Flatpack (STQFP) 3.3V Power Supply Operating Temperature Range -40°C to +85°C 3.
