IDT723673, IDT723663 - (IDT7236x3) CMOS SyncFIFO WITH BUS-MATCHING

Integrated Device Technology

📥 Download Datasheet

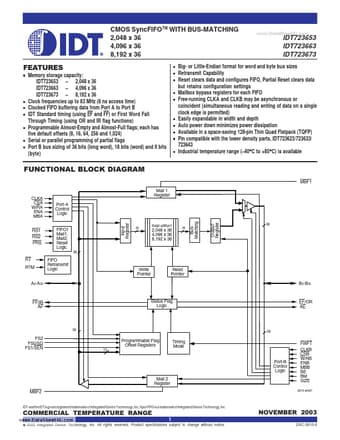

IDT723673 Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT723673, IDT723663. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IDT723673, IDT723663
Manufacturer	Integrated Device Technology
File Size	360.77 KB
Description	(IDT7236x3) CMOS SyncFIFO WITH BUS-MATCHING
Datasheet	IDT723663_IntegratedDeviceTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: IDT723673, IDT723663. Please refer to the document for exact specifications by model.

IDT723673 Product details

Description

The IDT723653/723663/723673 is a monolithic, high-speed, low-power, CMOS unidirectional Synchronous (clocked) FIFO memory which supports clock frequencies up to 83 MHz and has read access times as fast as 8ns.

Features

Memory storage capacity: IDT723653.
2,048 x 36 IDT723663.
4,096 x 36 IDT723673.
8,192 x 36 Clock frequencies up to 83 MHz (8 ns access time) Clocked FIFO buffering data from Port A to Port B IDT Standard timing (using EF and FF) or First Word Fall Through Timing (using OR and IR flag functions) Programmable Almost-Empty and Almost-Full flags; each has five default offsets (8, 16, 64, 256 and 1,024).
