IDT7187S - CMOS STATIC RAM 64K (64K x 1-BIT)

Download the IDT7187S datasheet PDF (IDT included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for cmos static ram 64k (64k x 1-bit).

Description

The IDT7187 is a 65,536-bit high-speed static RAM organized as 64K x 1.

It is fabricated using IDT’s highperformance, high-reliability CMOS technology.

Access times as fast as 25ns are available.

ISB a

Features

  • High speed (equal access and cycle time).
  • Military: 25/35/45/55/70/85ns (max. ).
  • Low power consumption.
  • Battery backup operation.
  • 2V data retention (L version only).
  • JEDEC standard high-density 22-pin ceramic DIP, 22-pin leadless chip carrier.
  • Produced with advanced CMOS high-performance technology.
  • Separate data input and output.
  • Input and output directly TTL-compatible.
  • Military product compliant to MIL-ST.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IDT-7187.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IDT7187S
Manufacturer Integrated Device Technology
File Size 70.65 KB
Description CMOS STATIC RAM 64K (64K x 1-BIT)
Datasheet download datasheet IDT7187S Datasheet

📁 Similar Datasheet

Other Datasheets by Integrated Device Technology
  • IDT7187L - CMOS STATIC RAM 64K (64K x 1-BIT)
  • IDT7188L - CMOS STATIC RAM 64K 16K x 4-BIT
  • IDT7188S - CMOS STATIC RAM 64K 16K x 4-BIT
  • IDT71016 - CMOS Static RAM
  • IDT71028 - CMOS STATIC RAM
  • IDT71124 - CMOS Static RAM
  • IDT71128 - CMOS Static RAM 1 Meg (256K x 4-Bit) Revolutionary Pinout
  • IDT71216 - BiCMOS StaticRAM 240K (16K x 15-BIT) CACHE-TAG RAM For PowerPCO and RISC Processors

Full PDF Text Transcription

Click to expand full text

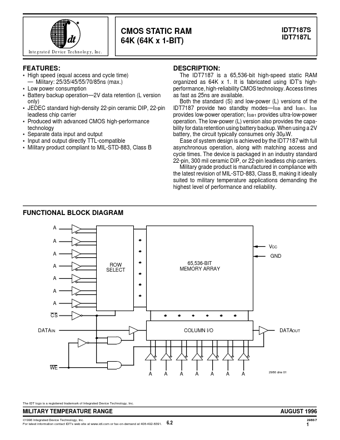

CMOS STATIC RAM 64K (64K x 1-BIT) Integrated Device Technology, Inc. IDT7187S IDT7187L FEATURES: • High speed (equal access and cycle time) — Military: 25/35/45/55/70/85ns (max.) • Low power consumption • Battery backup operation—2V data retention (L version only) • JEDEC standard high-density 22-pin ceramic DIP, 22-pin leadless chip carrier • Produced with advanced CMOS high-performance technology • Separate data input and output • Input and output directly TTL-compatible • Military product compliant to MIL-STD-883, Class B DESCRIPTION: The IDT7187 is a 65,536-bit high-speed static RAM organized as 64K x 1. It is fabricated using IDT’s highperformance, high-reliability CMOS technology. Access times as fast as 25ns are available.
