IDT70121S - HIGH-SPEED 2K x 9 DUAL-PORT STATIC RAM

Description

The IDT70121/IDT70125 are high-speed 2K x 9 Dual-Port Static RAMs.

The IDT70121 is designed to be used as a stand-alone 9-bit Dual-Port RAM or as a “MASTER” Dual-Port RAM together with the IDT70125 “SLAVE” Dual-Port in 18bit-or-more word width systems.

Features

  • High-speed access.
  • Commercial: 25/35/45/55ns (max. ).
  • Low-power operation.
  • IDT70121/70125S Active: 500mW (typ. ) Standby: 5mW (typ. ).
  • IDT70121/70125L Active: 500mW (typ. ) Standby: 1mW (typ. ).
  • Fully asychronous operation from either port.
  • MASTER IDT70121 easily expands data bus width to 18 bits or more using SLAVE IDT70125 chip.
  • On-chip port arbitration logic (IDT70121 only).
  • BUSY output flag on Master; BUSY input on.

📥 Download Datasheet

Datasheet Details

Part number IDT70121S
Manufacturer Integrated Device Technology
File Size 165.39 KB
Description HIGH-SPEED 2K x 9 DUAL-PORT STATIC RAM
Datasheet download datasheet IDT70121S Datasheet

📁 Similar Datasheet

  • IDT7015L - HIGH-SPEED 8K x 9 DUAL-PORT STATIC RAM (IDT)
  • IDT7015S - HIGH-SPEED 8K x 9 DUAL-PORT STATIC RAM (IDT)
  • IDT7016L - HIGH-SPEED 16K x 9 DUAL-PORT STATIC RAM (IDT)
  • IDT7016S - HIGH-SPEED 16K x 9 DUAL-PORT STATIC RAM (IDT)
  • IDT7005L - HIGH-SPEED 8K x 8 DUAL-PORT STATIC RAM (IDT)
  • IDT7005S - HIGH-SPEED 8K x 8 DUAL-PORT STATIC RAM (IDT)
  • IDT7006L - HIGH-SPEED 16K x 8 DUAL-PORT STATIC RAM (IDT)
  • IDT7006L - HIGH-SPEED 16K x 8 DUAL-PORT STATIC RAM (Renesas)
  • IDT7006S - HIGH-SPEED 16K x 8 DUAL-PORT STATIC RAM (IDT)
  • IDT7006S - HIGH-SPEED 16K x 8 DUAL-PORT STATIC RAM (Renesas)
Other Datasheets by Integrated Device Technology
  • IDT70121L - HIGH-SPEED 2K x 9 DUAL-PORT STATIC RAM
  • IDT70125L - HIGH-SPEED 2K x 9 DUAL-PORT STATIC RAM
  • IDT70125S - HIGH-SPEED 2K x 9 DUAL-PORT STATIC RAM
  • IDT7014S - HIGH-SPEED 4K x 9 DUAL-PORT STATIC RAM
  • IDT7028L - HIGH-SPEED 64K x 16 DUAL-PORT STATIC RAM
  • IDT7034L - HIGH-SPEED 4K x 18 DUAL-PORT STATIC RAM
  • IDT7034S - HIGH-SPEED 4K x 18 DUAL-PORT STATIC RAM
  • IDT7050L - HIGH-SPEED 1K x 8 FourPort STATIC RAM

Full PDF Text Transcription

Click to expand full text

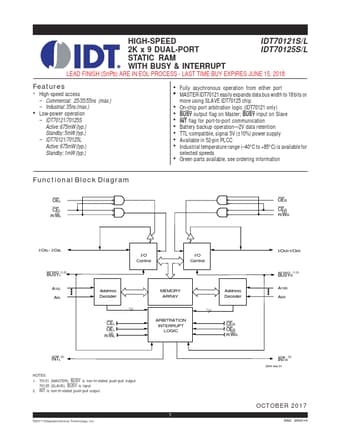

HIGH-SPEED 2K x 9 DUAL-PORT STATIC RAM WITH BUSY & INTERRUPT Integrated Device Technology, Inc. IDT70121S/L IDT70125S/L FEATURES: • High-speed access – Commercial: 25/35/45/55ns (max.) • Low-power operation – IDT70121/70125S Active: 500mW (typ.) Standby: 5mW (typ.) – IDT70121/70125L Active: 500mW (typ.) Standby: 1mW (typ.
