IDT54FCT645DT - FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS

Download the IDT54FCT645DT datasheet PDF (IDT54FCT2245 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for fast cmos octal bidirectional transceivers.

Description

The IDT octal bidirectional transceivers are built using an a

Features

  • or FCT245T/FCT640T/FCT645T:.
  • Std. , A, C and D speed grades.
  • High drive outputs (-15mA IOH, 64mA IOL).
  • Features for FCT2245T:.
  • Std. , A and C speed grades.
  • Resistor outputs (-15mA IOH, 12mA IOL Com. ) (-12mA IOH, 12mA IOL Mil. ).
  • Reduced system switching noise.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IDT54FCT2245_IntegratedDeviceTechnology.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IDT54FCT645DT
Manufacturer Integrated Device Technology
File Size 218.33 KB
Description FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS
Datasheet download datasheet IDT54FCT645DT Datasheet

📁 Similar Datasheet

  • IDT54FCT645 - FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS (Integrated Device)
  • IDT54FCT645AT - FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS (Integrated Device)
  • IDT54FCT645C - FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS (Integrated Device)
  • IDT54FCT645CT - FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS (Integrated Device)
  • IDT54FCT645T - FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS (Integrated Device)
  • IDT54FCT640 - FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS (Integrated Device)
  • IDT54FCT640AT - FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS (Integrated Device)
  • IDT54FCT640CT - FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS (Integrated Device)
  • IDT54FCT640T - FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS (Integrated Device)
  • IDT54FCT646 - FAST CMOS OCTAL TRANSCEIVER/REGISTER (Integrated Device)
Other Datasheets by Integrated Device Technology

Full PDF Text Transcription

Click to expand full text

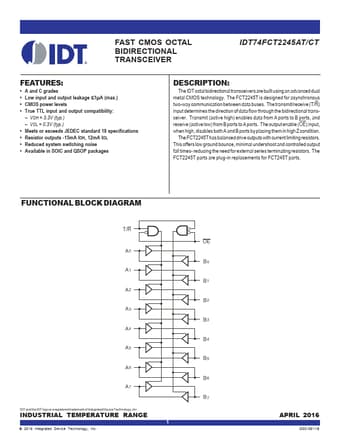

Integrated Device Technology, Inc. FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS IDT54/74FCT245T/AT/CT/DT - 2245T/AT/CT IDT54/74FCT640T/AT/CT IDT54/74FCT645T/AT/CT/DT FEATURES: • Common features: – Low input and output leakage ≤1µA (max.) – CMOS power levels – True TTL input and output compatibility – VOH = 3.3V (typ.) – VOL = 0.3V (typ.) – Meets or exceeds JEDEC standard 18 specifications – Product available in Radiation Tolerant and Radiation Enhanced versions – Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked) – Available in DIP, SOIC, SSOP, QSOP, CERPACK and LCC packages • Features for FCT245T/FCT640T/FCT645T: – Std., A, C and D speed grades – High drive outputs (-15mA IOH, 64mA IOL) • Features for FCT2245T: – Std.
