IDT54FCT533CT Datasheet - Integrated Device Technology

IDT54FCT533CT FAST CMOS OCTAL TRANSPARENT LATCHES

The FCT373T/FCT2373T, FCT533T and FCT573T/ FCT2573T are octal transparent latches built using an advanced dual metal CMOS technology. These octal latches have 3-state outputs and are intended for bus oriented applications. The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH.

IDT54FCT533CT Features

* Common features:

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* Meets or exceeds JEDEC standard 18 specifications

* Product available

IDT54FCT533CT_IntegratedDeviceTechnology.pdf

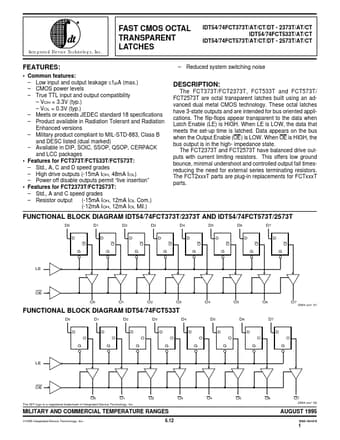

IDT54FCT533CT Datasheet Preview — Preview of IDT54FCT533CT PDF

Datasheet Details

Part number:

IDT54FCT533CT

Manufacturer:

Integrated Device Technology

File Size:

182.41 KB

Description:

Fast cmos octal transparent latches.
