IDT54FCT2374 - FAST CMOS OCTAL D REGISTERS (3-STATE)

Integrated Device Technology

📥 Download Datasheet

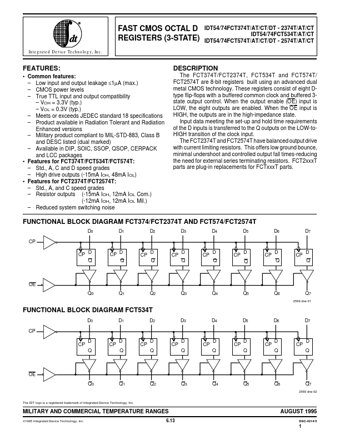

IDT54FCT2374 Datasheet Preview — Preview of IDT54FCT2374 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT54FCT2374
Manufacturer	Integrated Device Technology
File Size	168.90 KB
Description	FAST CMOS OCTAL D REGISTERS (3-STATE)
Datasheet	IDT54FCT2374_IntegratedDeviceTechnology.pdf

IDT54FCT2374 Product details

Description

The FCT374T/FCT2374T, FCT534T and FCT574T/ FCT2574T are 8-bit registers built using an advanced dual metal CMOS technology.

Features

or FCT374T/FCT534T/FCT574T:.
Std. , A, C and D speed grades.
High drive outputs (-15mA IOH, 48mA IOL).
Features for FCT2374T/FCT2574T:.
Std. , A, and C speed grades.
Resistor outputs (-15mA IOH, 12mA IOL Com. ) (-12mA IOH, 12mA IOL Mil. ).
Reduced system switching noise.
