ICS874003-04 PCI EXPRESS Jitter Attenuator

ICS874003-04 Description

PCI EXPRESS™ Jitter Attenuator ICS874003-04 www.DataSheet4U.com DATA SHEET General .
The ICS874003-04 is a high performance Differential-to-LVDS Jitter Attenuator designed for use HiPerClockS™ in PCI Express systems.

ICS874003-04 Features

* Three differential LVDS output pairs One differential clock input CLK/nCLK can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL, SSTL Input frequency range: 98MHz t

ICS874003-04 Applications

* such as PCI Express add-in cards. Pin Assignment F_SEL[2:0] Function Table Inputs F_SEL2 0 1 0 1 0 1 0 1 F_SEL1 0 0 1 1 0 0 1 1 F_SEL0 0 0 0 0 1 1 1 1 Outputs QA[0:1], nQA[0:1] ÷2 ÷5 ÷4 ÷2 ÷2 ÷5 ÷4 ÷4 QB, nQB0 ÷2 ÷2 ÷2 ÷4 ÷5 ÷4 ÷5 ÷4 QA1 VDDO QA0 nQA0 MR F_SEL0 nc VDDA F_SEL1 VDD 1 2 3 4 5 6 7 8 9

📥 Download Datasheet

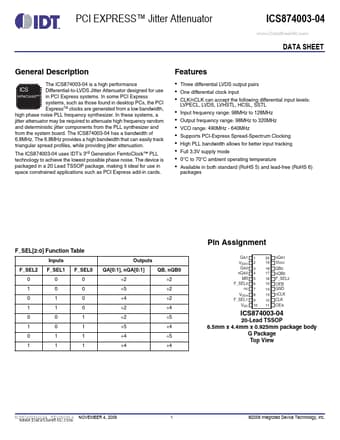

Preview of ICS874003-04 PDF
datasheet Preview Page 2 datasheet Preview Page 3
