ICS844246I - FEMTOCLOCKS CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER W/INTEGRATED FANOUT BUFFER

Description

The ICS844246I is a Cr ystal-to-LVDS Clock Synthesizer/Fanout Buffer designed for Fibre HiPerClockS™ Channel and Gigabit Ethernet applications and is a member of the HiperClockS™ family of High Performance Clock Solutions from IDT.

Features

  • Six LVDS outputs.
  • Crystal oscillator interface.
  • Output frequency range: 53.125MHz to 333.3333MHz.
  • Crystal input frequency range: 25MHz to 33.333MHz.
  • RMS phase jitter at 125MHz, using a 25MHz crystal (1.875MHz to 20MHz): 0.39ps (typical).
  • Full 3.3V or 3.3V core, 2.5V output supply mode.
  • -40°C to 85°C ambient operating temperature.
  • Available in both standard (RoHS 5) and lead-free (RoHS 6) packages Function IC S SELECT FUNC.

📥 Download Datasheet

Datasheet Details

Part number ICS844246I
Manufacturer Integrated Device Technology
File Size 358.65 KB
Description FEMTOCLOCKS CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER W/INTEGRATED FANOUT BUFFER
Datasheet download datasheet ICS844246I Datasheet

📁 Similar Datasheet

  • ICS844246 - CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER W/INTEGRATED FANOUT BUFFER (ICS)
  • ICS8442 - CRYSTAL OSCILLATOR-TO-DIFFERENTIAL LVDS FREQUENCY SYNTHESIZER (ICS)
  • ICS844251I-15 - CRYSTAL-TO-LVDS CLOCK GENERATOR (ICS)
  • ICS844252-04 - CRYSTAL-TO-LVDS CLOCK GENERATOR (ICS)
  • ICS844256 - CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER W/INTEGRATED FANOUT BUFFER (ICS)
  • ICS84427 - CRYSTAL-TO-LVDS INTEGRATED FREQUENCY SYNTHESIZER/FANOUT BUFFER (ICS)
  • ICS8442I - CRYSTAL OSCILLATOR-TO-DIFFERENTIAL LVDS FREQUENCY SYNTHESIZER (ICS)
  • ICS8442I-90 - Crystal-to-LVDS Frequency Synthesizer (Renesas)
  • ICS844001-21 - CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER (ICS)
  • ICS844001I - CRYSTAL-TO- LVDS CLOCK GENERATOR (ICS)
Other Datasheets by Integrated Device Technology
  • ICS841664I - FEMTOCLOCK CRYSTAL-TO-HCSL CLOCK GENERATOR
  • ICS841S01 - PCI EXPRESS CLOCK GENERATOR
  • ICS841S02I - PCI EXPRESS CLOCK GENERATOR
  • ICS8430-62 - 2.5V Differential LVPECL Frequency Synthesizer
  • ICS8430002 - High-Performance Fractional-N Frequency Synthesizer
  • ICS843002I-40 - 175MHZ FEMTOCLOCKTM VCXO BASED SONET/SDH JITTER ATTENUATOR
  • ICS843002I-41 - 700MHZ FEMTOCLOCKTM VCXO BASED SONET/SDH JITTER ATTENUATOR
  • ICS843002I-72 - FEMTOCLOCKS VCXO BASED WCDMA CLOCK GENERATOR/JITTER ATTENUATOR

Full PDF Text Transcription

Click to expand full text

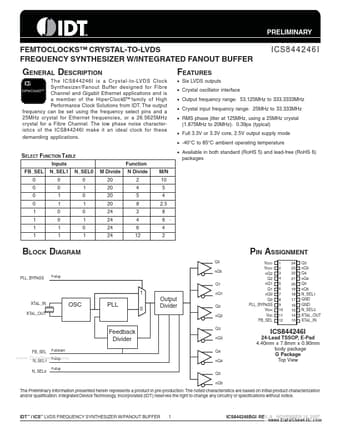

PRELIMINARY FEMTOCLOCKS™ CRYSTAL-TO-LVDS FREQUENCY SYNTHESIZER W/INTEGRATED FANOUT BUFFER ICS844246I GENERAL DESCRIPTION The ICS844246I is a Cr ystal-to-LVDS Clock Synthesizer/Fanout Buffer designed for Fibre HiPerClockS™ Channel and Gigabit Ethernet applications and is a member of the HiperClockS™ family of High Performance Clock Solutions from IDT. The output frequency can be set using the frequency select pins and a 25MHz crystal for Ethernet frequencies, or a 26.5625MHz crystal for a Fibre Channel. The low phase noise characteristics of the ICS844246I make it an ideal clock for these demanding applications. FEATURES • Six LVDS outputs • Crystal oscillator interface • Output frequency range: 53.125MHz to 333.3333MHz • Crystal input frequency range: 25MHz to 33.
