5P49EE802 - Low-power Clock Generator

Product Overview

Integrated Device Technology

📥 Download Datasheet

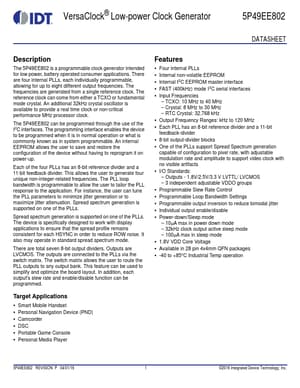

5P49EE802 Low-power Clock Generator by Integrated Device Technology - Datasheet Preview — Datasheet preview – 5P49EE802

Datasheet Details

Part number	5P49EE802
Manufacturer	Integrated Device Technology
File Size	191.83 KB
Description	Low-power Clock Generator
Datasheet	5P49EE802 Datasheet
Additional preview pages of the 5P49EE802 datasheet.

Product details

Description

The 5P49EE802 is a programmable clock generator intended for low power, battery operated consumer applications.

Features

Four internal PLLs.
Internal non-volatile EEPROM.
Internal I2C EEPROM master interface.
FAST (400kHz) mode I2C serial interfaces.
Input Frequencies.
TCXO: 10 MHz to 40 MHz.
Crystal: 8 MHz to 30 MHz.
RTC Crystal: 32.768 kHz.
Output Frequency Ranges: kHz to 120 MHz.
Each PLL has an 8-bit reference divider and a 11-bit feedback-divider.
8-bit output-divider blocks.
One of the PLLs support Sp.
