IDT74FCT3573 3.3V CMOS OCTAL TRANSPARENT LATCHES

Integrated Device Tech

Description

3.3V CMOS OCTAL TRANSPARENT LATCHES Integrated Device Technology, Inc.IDT54/74FCT3573/A ADVANCE INFORMATION .
The FCT3573/A are octal transparent latches built using an advanced dual metal CMOS technology.

📥 Download Datasheet

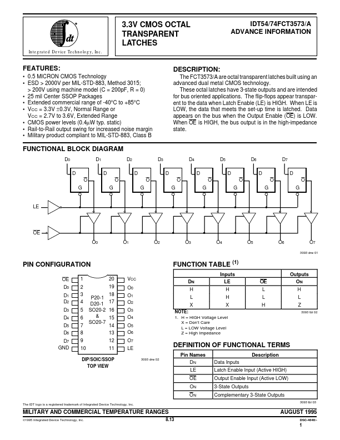

IDT74FCT3573 Datasheet Preview — Preview of IDT74FCT3573 PDF

Datasheet Specifications

Part number: IDT74FCT3573
Manufacturer: Integrated Device Tech
File Size: 108.67 KB
Datasheet: IDT74FCT3573_IntegratedDeviceTechnology.pdf
Description: 3.3V CMOS OCTAL TRANSPARENT LATCHES

Features

* 0.5 MICRON CMOS Technology
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
* 25 mil Center SSOP Packages
* Extended commercial range of -40°C to +85°C
* VCC = 3.3V ± 0.3V, Normal Range or VCC = 2.7V to 3.6V, Extende

Applications

* The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the set-up time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the bus output is in the high-impedance state. FUNCTIONAL BLOCK DIAGRAM D0 D O
