IDT74FCT245AT FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS

IDT74FCT245AT Description

FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVERS Integrated Device Technology, Inc.IDT54/74FCT245T/AT/CT/DT - 2245T/AT/CT IDT54/74FCT640T/AT/CT IDT54/74FC.
The IDT octal bidirectional transceivers are built using an advanced dual metal CMOS technology.

IDT74FCT245AT Features

* Common features:
* Low input and output leakage ≤1µA (max. )
* CMOS power levels
* True TTL input and output compatibility
* VOH = 3.3V (typ. )
* VOL = 0.3V (typ. )
* Meets or exceeds JEDEC standard 18 specifications
* Product available

📥 Download Datasheet

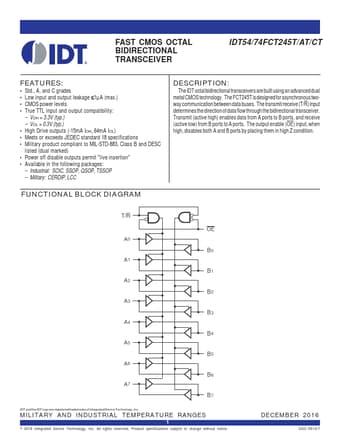

Preview of IDT74FCT245AT PDF
datasheet Preview Page 2 datasheet Preview Page 3
