MK74CB217 - Dual 1 to 8 Buffalo Clock Driver

Description

The MK74CB217 Buffalo™ is a monolithic CMOS high speed clock driver.

It consists of two identical single input to eight low-skew output, non-inverting clock drivers.

This eliminates concerns of part to part matching in many systems.

Features

  • Tiny 28 pin SSOP (150 mil) package.
  • Dual one input to eight output clock drivers.
  • Outputs are skew matched to within 250 ps.
  • A outputs and B outputs matched to 250 ps.
  • 3.3 V or 5 V supply voltage.
  • Output Enable tri-states each bank of eight.
  • Clock speeds up to 200 MHz.

📥 Download Datasheet

Datasheet Details

Part number MK74CB217
Manufacturer Integrated Circuit Systems
File Size 76.03 KB
Description Dual 1 to 8 Buffalo Clock Driver
Datasheet download datasheet MK74CB217 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MK74CB218 CLOCK DRIVER Renesas
MK74CG117A 16 OUTPUT LOW SKEW CLOCK GENERATOR Renesas
MK71050-03 Low Energy wireless module LAPIS Semiconductor
MK71251-01 Bluetooth Smart wireless module LAPIS
MK71251-02 Bluetooth Smart wireless module LAPIS

Other Datasheets by Integrated Circuit Systems

Part Number Description
MK74CB214 Dual 1 to 7 Buffalo Clock Driver
MK74CB218 Dual 1 to 8 Buffalo Clock Driver
MK74CB115 1 to 16 Buffalo Clock Driver
MK74CB163 1 to 16 PECL to CMOS Buffalo Clock Driver
MK74CB44 Quad 1 to 4 Buffalo Clock Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

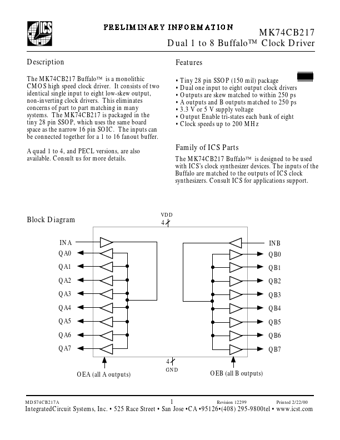

PRELIMINARY INFORMATION MK74CB217 Dual 1 to 8 Buffalo™ Clock Driver Features • Tiny 28 pin SSOP (150 mil) package • Dual one input to eight output clock drivers • Outputs are skew matched to within 250 ps • A outputs and B outputs matched to 250 ps • 3.3 V or 5 V supply voltage • Output Enable tri-states each bank of eight • Clock speeds up to 200 MHz Description The MK74CB217 Buffalo™ is a monolithic CMOS high speed clock driver. It consists of two identical single input to eight low-skew output, non-inverting clock drivers. This eliminates concerns of part to part matching in many systems. The MK74CB217 is packaged in the tiny 28 pin SSOP, which uses the same board space as the narrow 16 pin SOIC. The inputs can be connected together for a 1 to 16 fanout buffer.
