ICS9FG107 - Programmable FTG for Differential CPU

Integrated Circuit Systems

📥 Download Datasheet

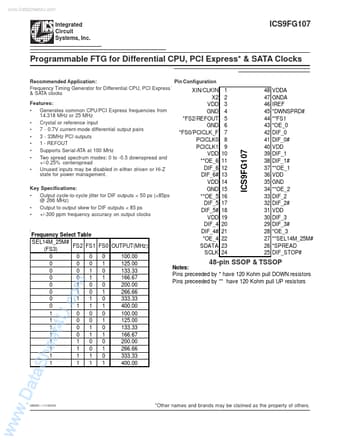

ICS9FG107 Datasheet Preview — Preview of ICS9FG107 PDF

Datasheet Details

Part number	ICS9FG107
Manufacturer	Integrated Circuit Systems
File Size	151.00 KB
Description	Programmable FTG for Differential CPU
Datasheet	ICS9FG107_IntegratedCircuitSystems.pdf

ICS9FG107 Product details

Description

PIN # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 PIN NAME XIN/CLKIN X2 VDD GND FS2/REFOUT GND FS0/PCICLK_F PCICLK0 PCICLK1 VDD OE_6 DIF_6 DIF_6# VDD GND OE_5 DIF_5 DIF_5# VDD DIF_4 DIF_4# OE_4 SDATA SCLK PIN TYPE IN OUT PWR PWR I/O PWR I/O OUT OUT PWR IN OUT OUT PWR PWR IN OUT OUT PWR OUT OUT IN I/O IN DESCRIPTION Crystal input or Reference Clock input Crystal output, Nominally 14.318MHz Power supply, nominal 3.3V Ground pin.

Features

Generates common CPU/PCI Express frequencies from 14.318 MHz or 25 MHz.
Crystal or reference input.
7 - 0.7V current-mode differential output pairs.
3 - 33MHz PCI outputs.
1 - REFOUT.
Supports Serial-ATA at 100 MHz.
Two spread spectrum modes: 0 to -0.5 downspread and +/-0.25% centerspread.
Unused inputs may be disabled in either driven or Hi-Z state for power management. Key Specifications:.
Output cycle-to-cycle.
