ICS950908 - Programmable Timing Control Hub

Integrated Circuit Systems

📥 Download Datasheet

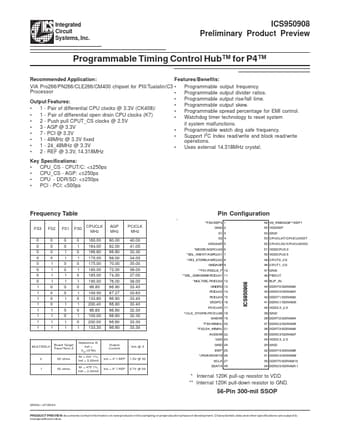

ICS950908 Datasheet Preview — Preview of ICS950908 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ICS950908
Manufacturer	Integrated Circuit Systems
File Size	279.57 KB
Description	Programmable Timing Control Hub
Datasheet	ICS950908_IntegratedCircuitSystems.pdf

ICS950908 Product details

Description

The ICS950908 is a single chip clock solution for desktop designs using the VIA Pro266/PN266/CLE266/CM400 chipset with PC133 or DDR memory.

Features

Benefits: VIA Pro266/PN266/CLE266/CM400 chipset for PIII/Tualatin/C3.
Programmable output frequency. Processor.
Programmable output divider ratios.
Programmable output rise/fall time. Output Features:.
Programmable output skew.
1 - Pair of differential CPU clocks @ 3.3V (CK408)/.
Programmable spread percentage for EMI control.
1 - Pair of differential open drain CPU clocks (K7).
Watchdog timer technology to reset system.
