ICS9148-17 Frequency Generator & Integrated Buffers

ICS9148-17 Description

Integrated Circuit Systems, Inc.ICS9148-17 Frequency Generator & Integrated Buffers for PENTIUM/ProTM General .
The ICS9148-17 generates all clocks required for high speed RISC or CISC microprocessor systems such as Intel PentiumPro or Cyrix.

ICS9148-17 Features

* include four CPU, six PCI, two AGP (=2xPCI) and Twelve SDRAM clocks. Two reference outputs are available equal to the crystal frequency. One 48 MHz for USB, and one 24 MHz clock for Super IO. Built in ±1.5%, 0.6% center or down spread spectrum modulation to reduce EMI. Serial programming I2C interfa

📥 Download Datasheet

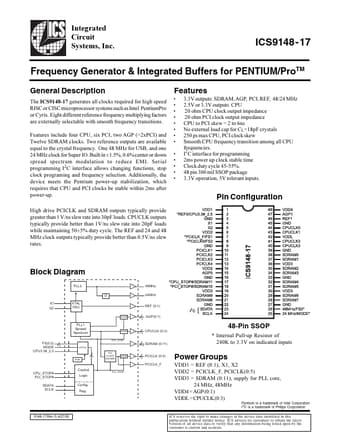

Preview of ICS9148-17 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS9148-17
Manufacturer
Integrated Circuit Systems
File Size
466.09 KB
Datasheet
ICS9148-17_IntegratedCircuitSystems.pdf
Description
Frequency Generator & Integrated Buffers
